Laser-milled molds
Aluminum molds designed for LED diffusers fabricated by laser milling technology

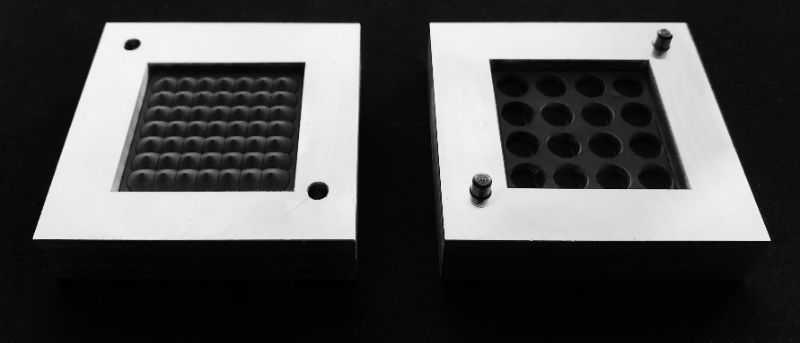

LMM1

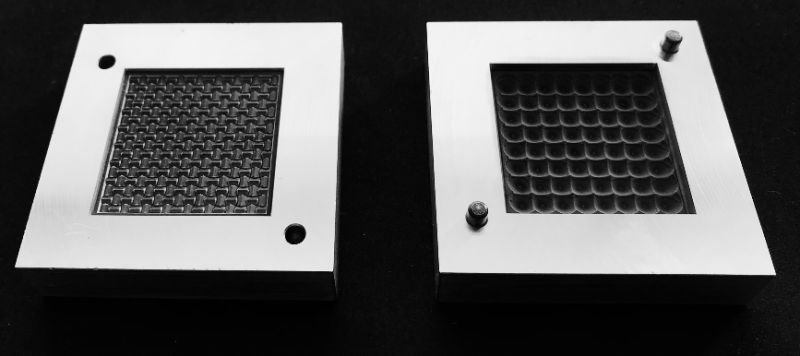

LMM2
Features
Industrial design
Customization upon request
CNC machined aluminum
Precision laser milling technology
Applications
Thermoplastic molding
LEDs secondary optics
Light diffusers
Overview
Thigh-performance laser milling technology is the perfect tool for the production of industrial molds adapted to LED light diffusers in combination with CNC machining
The laser milled molds LMM1 and LMM2 are designed for the thermoplastic molding of LEDs secondary optics
Specifications
Material, Grade 6061 T6 Aluminum
Mold dimensions (xyz), 50.8 × 50.8 × 12.7 mm³
Molding cavity dimensions (xyz), 30.0 × 30.0 × 8.0 mm³ - LMM1
30.0 × 30.0 × 11.0 mm³ - LMM2
